Description

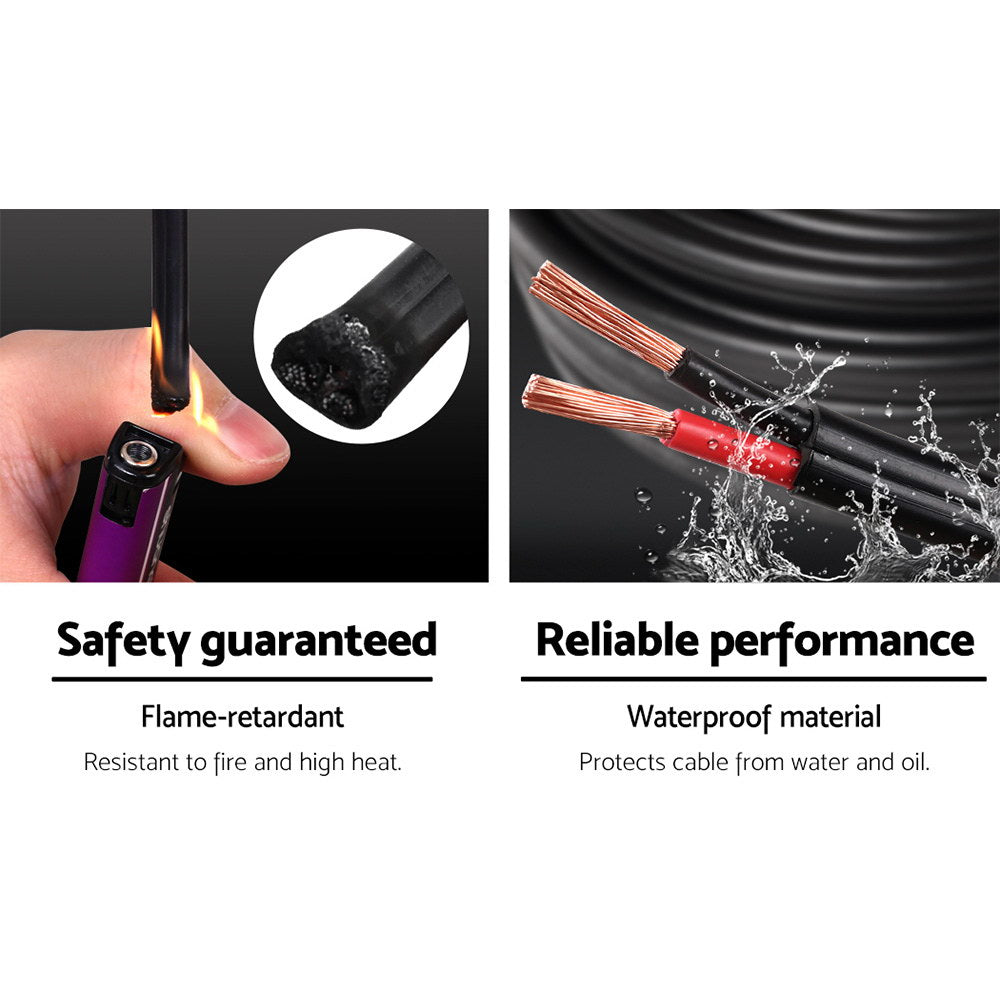

With its twin core design, our Twin Cable Sheath Wire is one of the best in the market. Comprising pure oxygen-free copper and a highly durable and strong reinforced PVC cover with black sheathing, our twin core sheath wire can handle any application with ease and confidence. And that can make a difference with a good project and a great one. Not least. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing any of its effective conductivity. The wire is SAA-certified and conforms to strict Australian standards.
Features
* 6MM twin sheath automotive cable

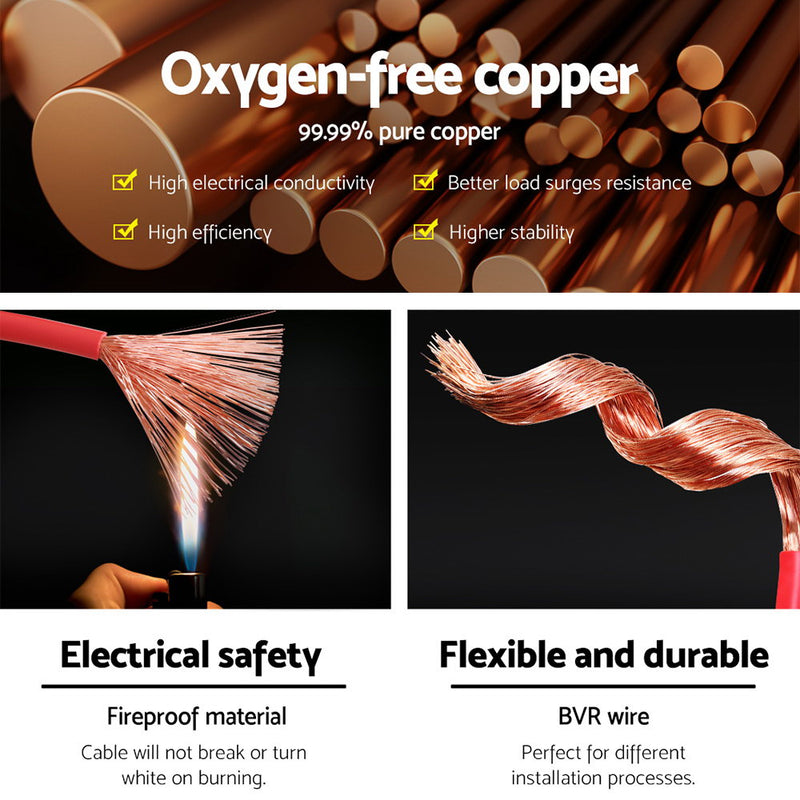

* Oxygen-free copper core conductor
* Low eccentricity

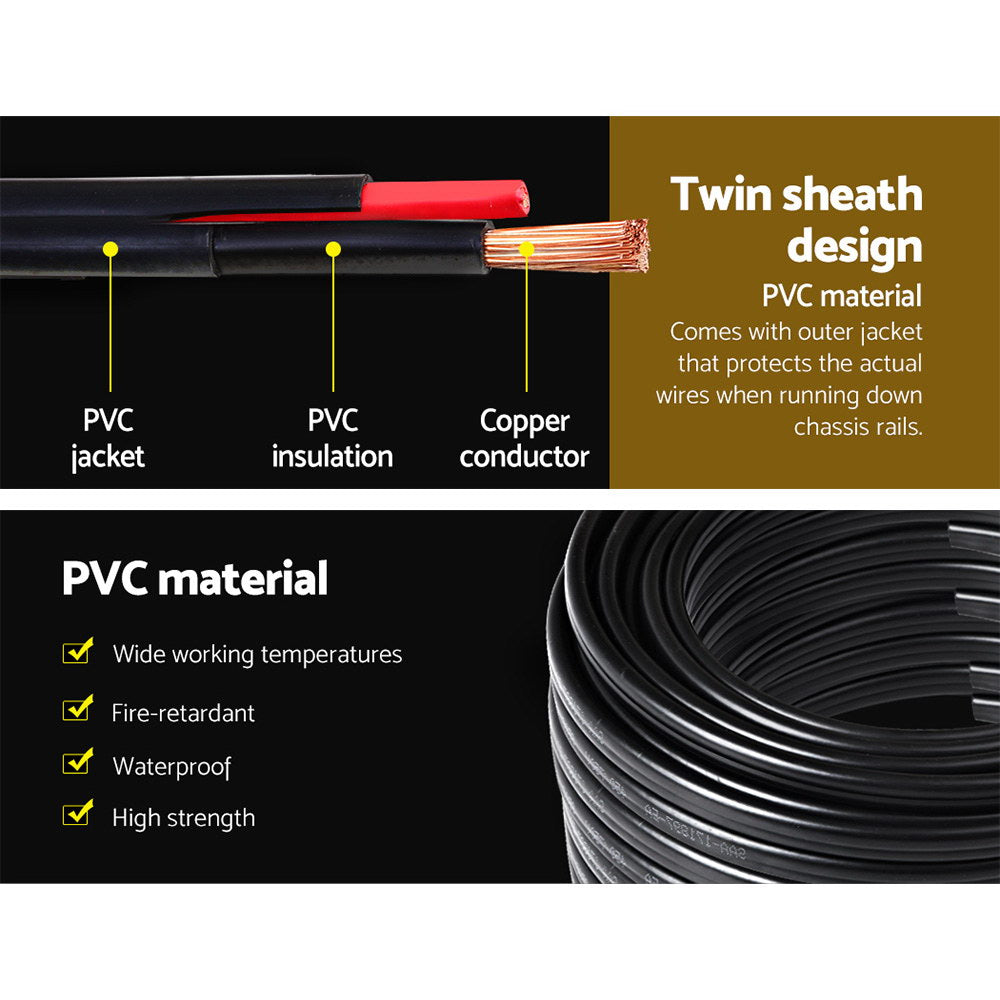

* Reinforced PVC material
* SAA-certified
* Can normally work up to 450V AC/DC

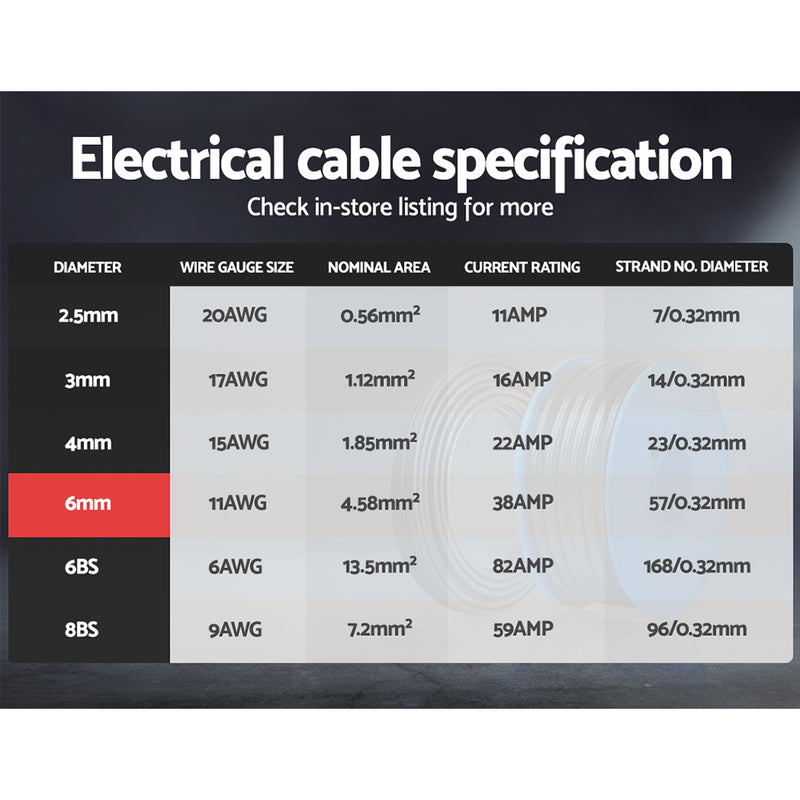

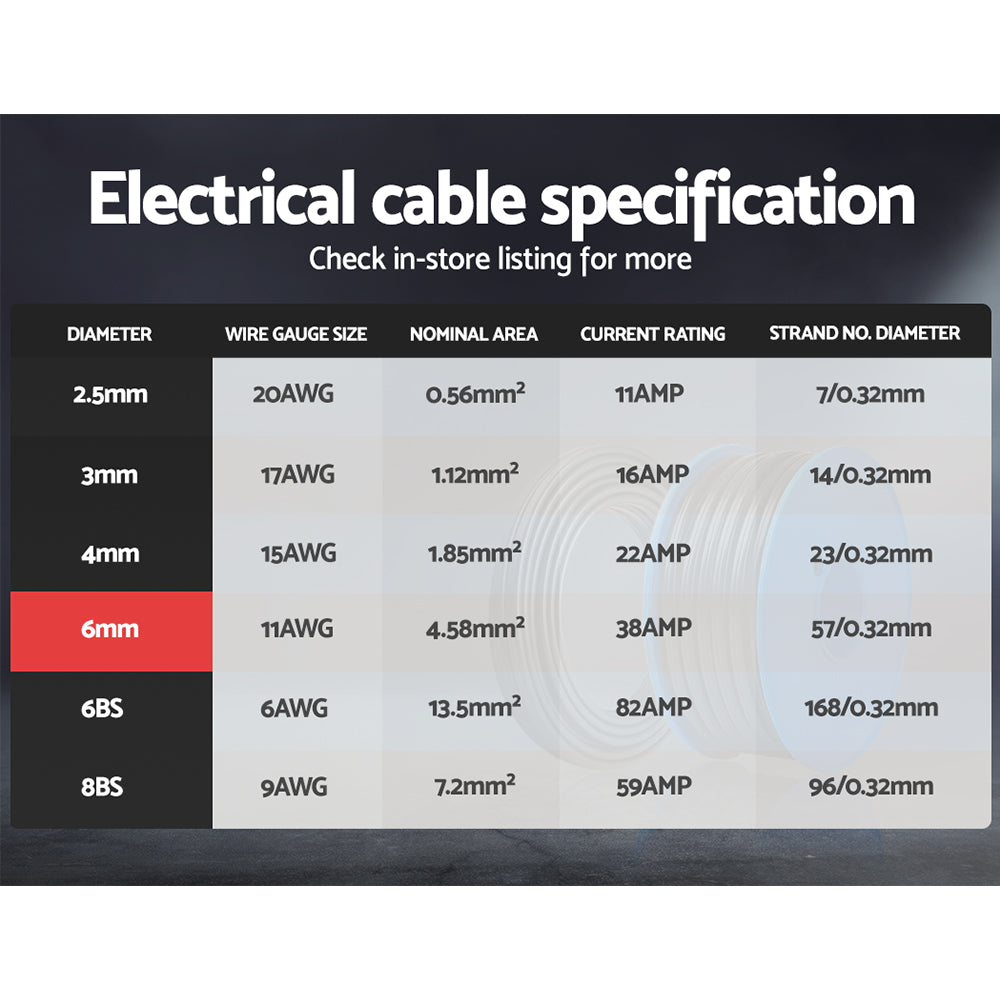

Specifications:
* Conductor: Oxygen-free plain copper wire to AS/NZ 1125
* Insulation: V90 PVC to AS/NZ 3808
* Sheath: 5V90 PVC to AS/NZ 3808
* Amp rating: 38
* No. of cores: 2
* Cable Length: 60m
* Cable diameter: 6mm
* Wire Gauge:11AWG
* Strand no. diameter: 57/0.32mm
* Nominal area: 4.58mm²
* Nominal O.D.: 5.7mm x 9.6mm
* Colour: Black sheathing
* Conductor resistance < 4.01 ohm/Km(20 degree centigrade)
* Dielectric strength(kV/sec AC):2.5/60
* Unaged acceptable tensile strength = 12.5Mpa
* Unaged acceptable ultimate elongation =130%
* Assembly required: No
* Number of Packages: 1
Package Content
1 x Twin Core Cable
1 x Cable Spool
