Description
Features:
- Universal input
- Japanese Capacitor
- High efficiency 87%
- Meet CEC Level V, ErP Lot 7, Energy Star EPS2.0
- Over voltage protection
- Over current protection
- Short circuit protection
- Over Thermal protection
- No load consumption≦0.5W
Output Specifications:
Model | Output power | Min. Load | Max. Load | Total power | Efficiency |
SSA-1201-24 | 24V | 0A | 5 | 120W | 87% |
Dimension:
General Specifications:
- Input voltage range: 90~264 Vac
- Input frequency: 47~63 Hz
- Input current: 2A (rms)
- Efficiency: ≧87% Average
- Leakage current: 3.5mAa max.
Safety:
Safety | EMI/EMC | |||||||||||||||
CEC | CB | CUL | UL | CCC | DEMKO | FIMKO | NEMKO | SEMKO | TUV | cTUVus | VDE | PSE | BSMI | C-tick | CE | FCC |
V | V | V | V | V | V | V | V | V | V | |||||||
- (V = certificate ready ; P = certificate pending; V * = not apply to all models )
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
You may also like
Recently viewed

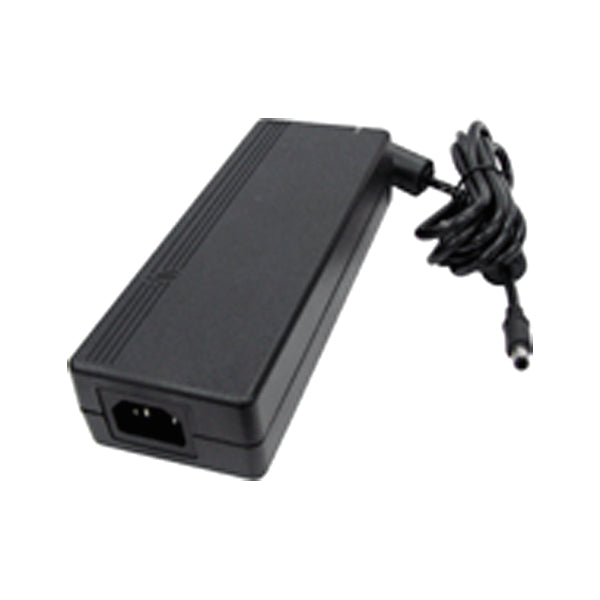

Seasonic Wall Mount Switching Adapter (SSA-1201-24)
