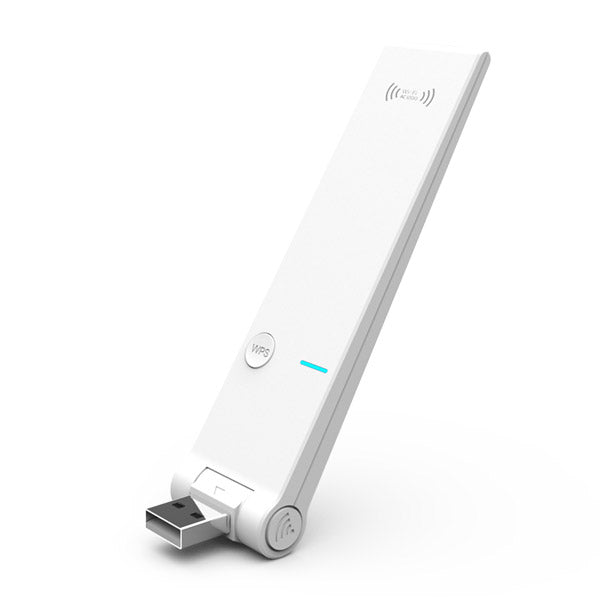

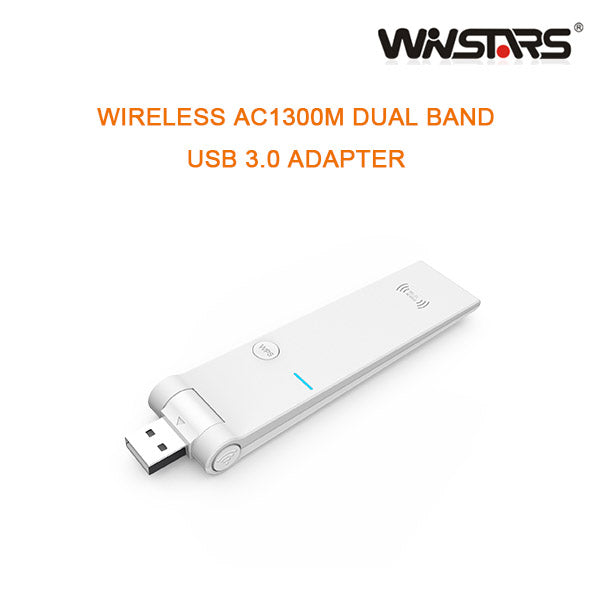

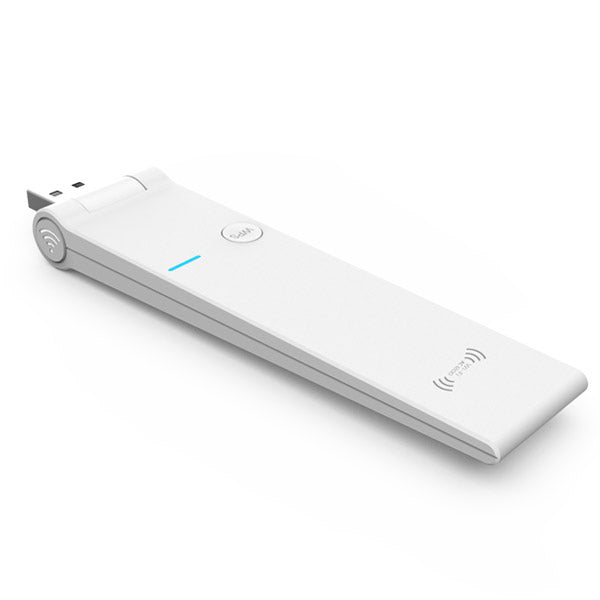

WINSTAR WIRELESS AC1300M DUAL BAND USB 3.0 ADAPTER

Features

• 1300 (867+400)Mbps wireless speed
• Support 2.4GHz & 5GHz WLAN networks
• Dual Band connections for lag-free HD video streaming and gaming
• SuperSpeed USB 3.0 port, backward compatible to USB 2.0
• Complies with IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b standards
• 20MHz & 40MHz & 80MHz bandwidth transmission
• OFDM with BPSK, QPSK, 16QAM, 64QAM, 256QAMmodulation
• Supports Windows XP / Vista / 7 / 8 / 8.1/10, MAC

Specification

• Hardware
• Ports: USB 3.0
• Button: WPS
• LED: 1 X Link/ Active
• Chipset:RTL8812AU
• Flash: N/A
• SDRAM: N/A
• Power Supply: USB 5V
• Power Plug: N/A
• Power Consumption:/
• Rated Voltage/ requency /current:DC 5V about 500mA
• Wireless
• Standard:IEEE802.11ac,IEEE 802.11a, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
• Modulation:
• 11ac\n: 16QAM, 64QAM 128QAM 256QAM with OFDM
• 11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
• 11b: DQPSK, DBPSK, DSSS, CCK
• Speed:
• 802.11ac: up to 867Mbps
• 802.11n: up to 400Mbps
• 802.11a: up to 54Mbps
• 802.11g: 54 M
• 802.11b: 11 M
• Frequency band:5GHz and 2.4GHz
• Power:
• 802.11b: 22dBm ± 2 dBm 802.11g: 16dBm ± 2 dBm
• 802.11n: 15dBm ± 2 dBm 802.11ac: 14dBm ± 2 dBm
• Distance:Outdoors 300m, Indoor 100m(According to the actual environment change)
• Safely 64/128-bit WEP, AES,TKIP,WPA,WPA2,802.1x,WPA-PSK,WPA2-PSK,MAC, WDS
• Environmental
• Operating Temperature:0ºC~40ºC
• Storage Temperature:-10~70
• Relative Humidity(Operational): 10%~90%,noncondensing
• Relative Humidity(Storage):10%~90%,noncondensing
• Software
• Standard Version
• RFC768 User Datagram Protocol(UDP)
• RFC791 Internet Protocol(IP)
• RFC792 Internet Control Message Protocol
• RFC793 Transmission Control Protocol(TCP)
• bandwidth 20MHz?€?40MHz?€?80MHz
• Wireless Mode 11ac only, 11n only, 11g only?€?11b only(option)
• System Windows XP / Vista / 7 / 8 / 8.1/10, MAC

Product weight and dimensions

Item Weight: 0.25 KG
Product Dimensions: 98mm L x 28mm W x 10mm (L x W x H)

Package content

• 1 x Wireless-AC USB3.0 Aapter
• 1 x Quick Installation
• 1 x CD driver
